Description
The Wavlink Docking Station offers ultra-fast data transfer speeds among connected devices. With two USB3.0 and four USB2.0 connections, the dock ensures compatibility with a vast array of peripherals such as external hard drives, printers, and scanners.Vertical Stand – Space-Saving Design
Supports Windows 10/8.1/8/7 & Legacy XP systems, Mac OS X based on intel processor. Linux/Unix are NOT supported.
With one simple USB cable, you can access to up to two Full-HD displays(HDMI and DVI-I) for mirroring/extending your desktop to external monitors, as well as Gigabit Ethernet network, microphone, speakers, external hard drive, optical disk drive, printers, USB keyboard, mouse and many other USB devices.

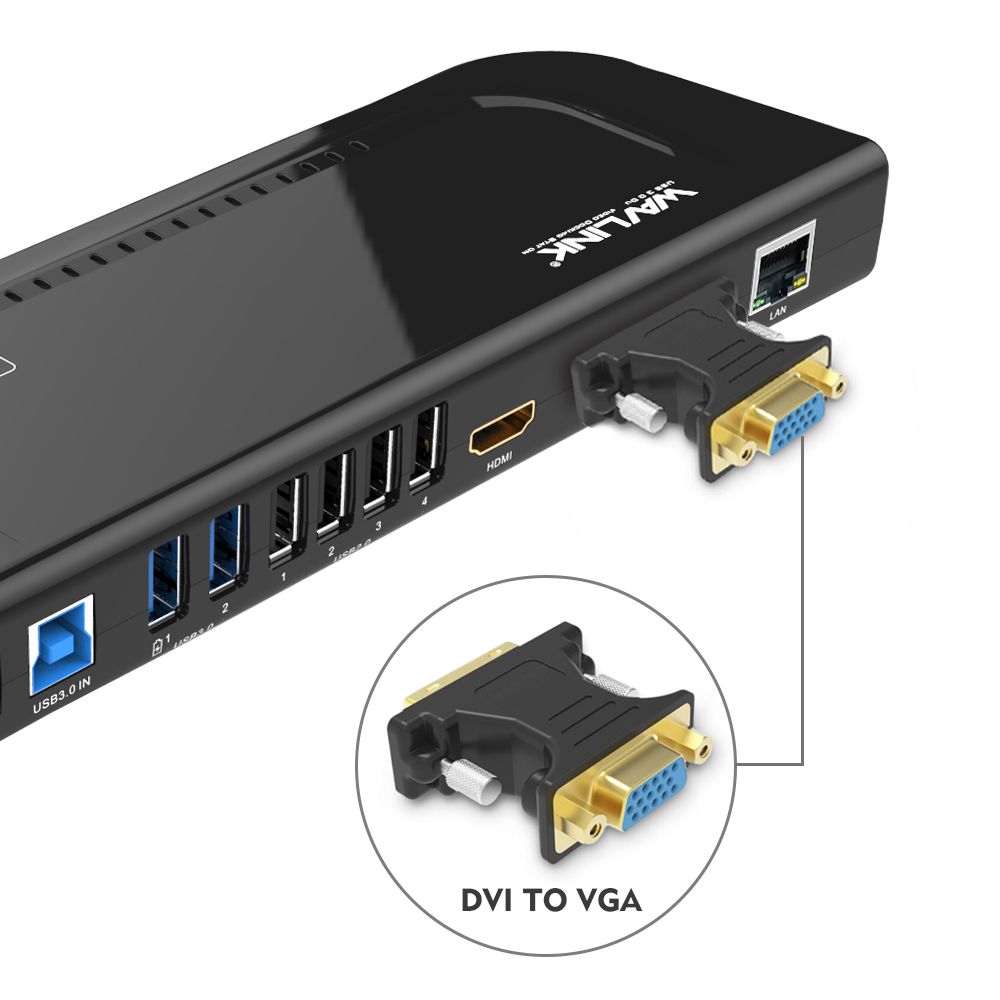

VGA Output( through DVI to VGA converter) – 15pin support resolution up to 1280×1024. Maximize the space on your desk and enhance your productivity. It creates an organized and full-sized workstation with less clutter, which is great for your laptop, Macbook, or Ultrabook. TECHNICAL SPECIFICATIONS
Model
UG39DK4

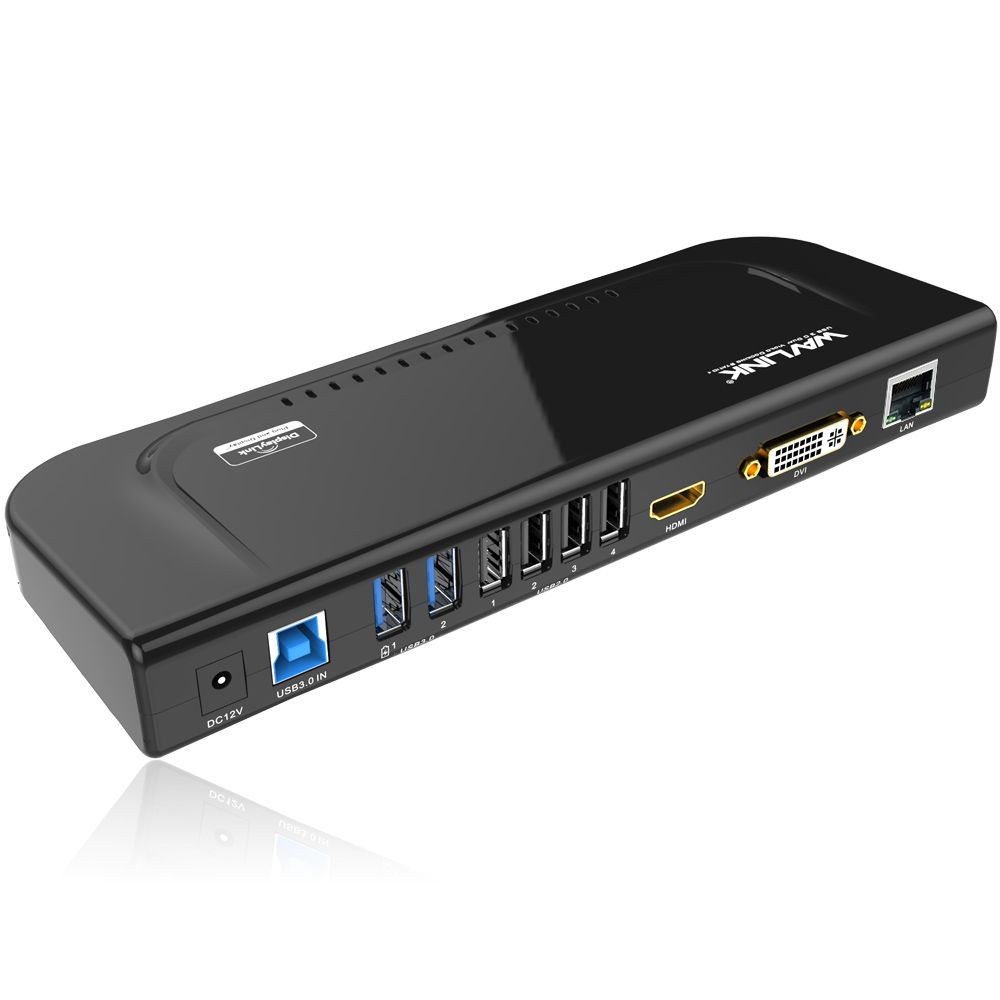

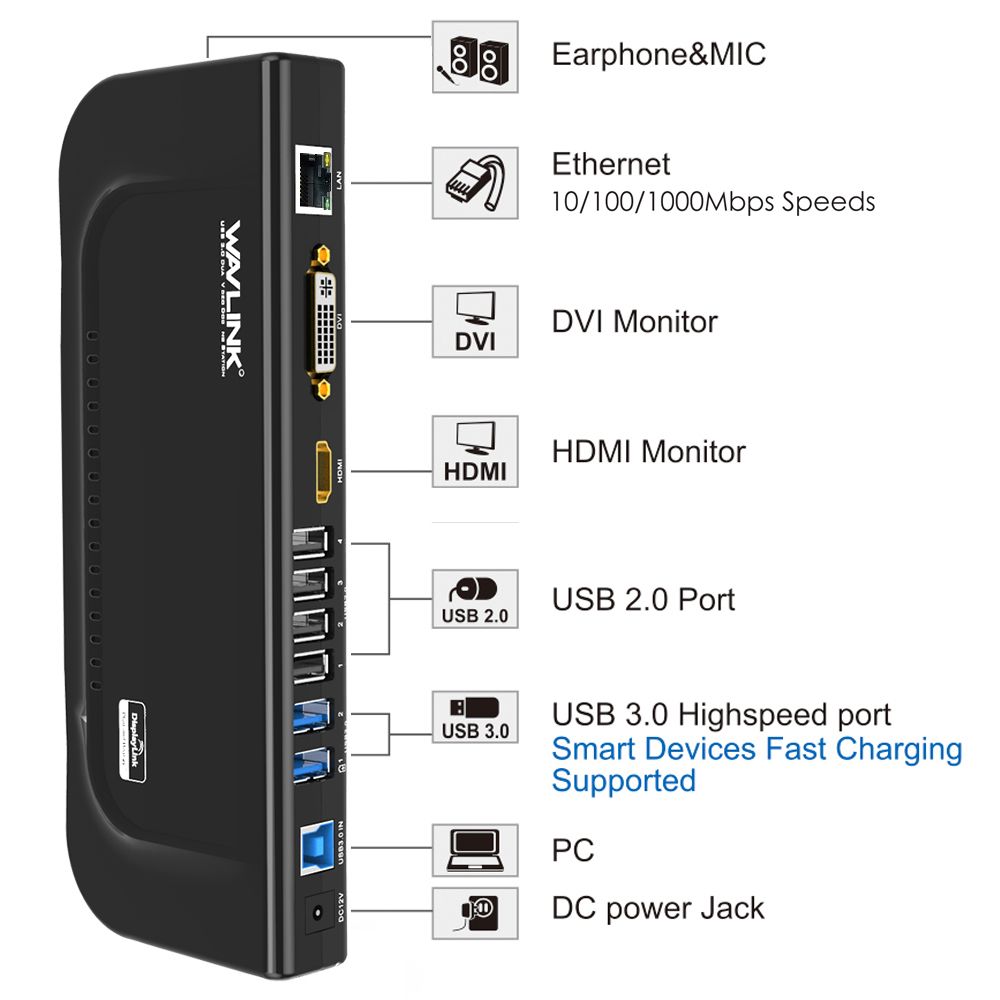

Ports
4 x USB-A 2.0
2 x USB-A 3.0
1 x USB-B
1 x Microphone Input Jack Port
1 x Audio Output Jack Port
1 x HDMI
1 x DVI or VGA (through converter)
1 x RJ45 Gigabit Ethernet
1 x DC Power Input Port
LED
Blue
Power Supply
DC12V / 2A
DIMENSIONS
224mm x 87mm x 32mm ( L x W x H )
Housing Material
ABS
Shell Color
Black
FUNCTIONS
Working Standards
USB 3.0 5Gbps
HDMI DVI Video
Microphone/Earphone Input/Output
USB 3.0 to Gigabit
VGA (DVI to VGA Adapter)
Operating System Support
Windows
Mac OS X or above
PACKAGE
In The Box
1 x USB 3.0 Universal Docking Station
1 x SuperSpeed USB 3.0 Cable
1 x DVI convert to VGA Adapter
1 x DC12V/2A Certified Power Adapter
1 x User Manual
